Automatic vertical cartoning machine

Kartoniarka z 2017 jak nowa

Watch the product:
Add feedback:

Availability: Exists (1 szt.)

Year of production:	2017
Industry:	Pharma, Suplements, Household chemicals, Beauty
Packaging types:	Boxes
In our showroom:	No
Appraiser's valuation:	Yes
Technical Condition:	A - new or mint with low machine hours

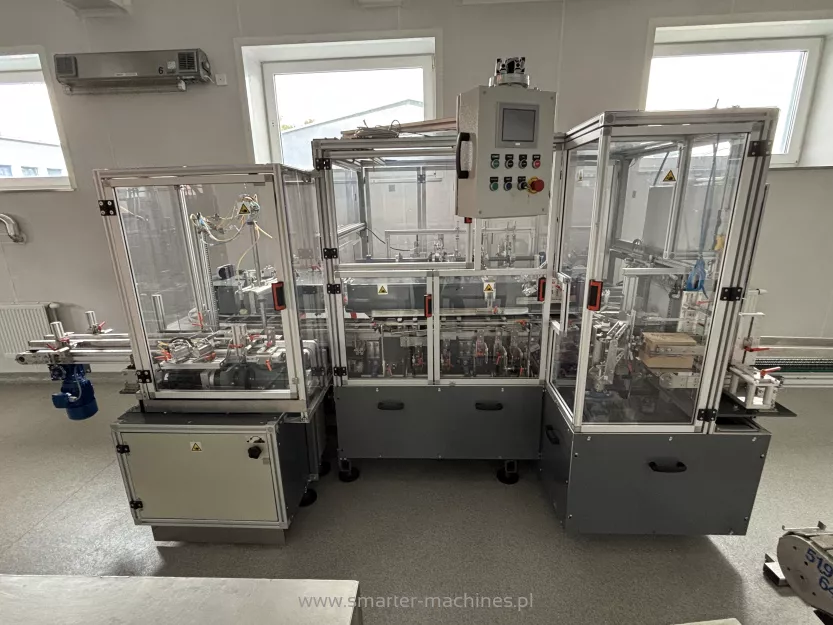

We offer a KPN-03 vertical automatic cartoning machine, manufactured in 2017, in excellent technical condition – practically like new. The machine is designed for start-stop operation and is intended for automatic opening of cartons and packing products of various shapes into them.

The device is suitable for use in the food, cosmetics, pharmaceutical, chemical, and other industries where precise, fast, and repeatable operation is required.

Technical parameters:

Dimensions (L x W x H): 3300 × 1124 (2450) × 1900 mm
Weight: approx. 1400 kg
Main power supply: 3 × 400 V, 50–60 Hz, 6000 W
Maximum capacity: up to 50 products/min (depending on product type)
Range of products supported:
Maximum product dimensions: a = 60 mm, b = 120 mm, c = 180 mm
Minimum product dimensions: a = 20 mm, b = 30 mm, c = 75 mm

Device features and functions:

Designed for continuous operation
Easy adjustment to different product sizes (format tooling required)
Smooth speed adjustment
Manual product loading into the carton
Support for glued or snap-lock boxes
Control and rejection system for incomplete products (optional)

Main components:

Carton feed conveyor – forming cartons directly on the machine
Vacuum carton feeder – transferring the box to the main chain
Bottom and top formats – closing the carton with a snap-on or adhesive method (optional)
Output conveyor – collection of finished cartons
Defective product ejector
