Industrial Homogenizing Mixer 500 L Industrial Homogenizing Mixer with Water and Oil Phase Tanks

Heavy-Duty Industrial Mixing and Homogenizing System for Cosmetic, Pharmaceutical and Chemical Production

For sale: used stainless steel industrial mixing and homogenizing system designed for large-scale production of emulsions, creams, balms, gels, ointments, and other formulations requiring intensive mixing and high-shear homogenization under controlled process conditions.

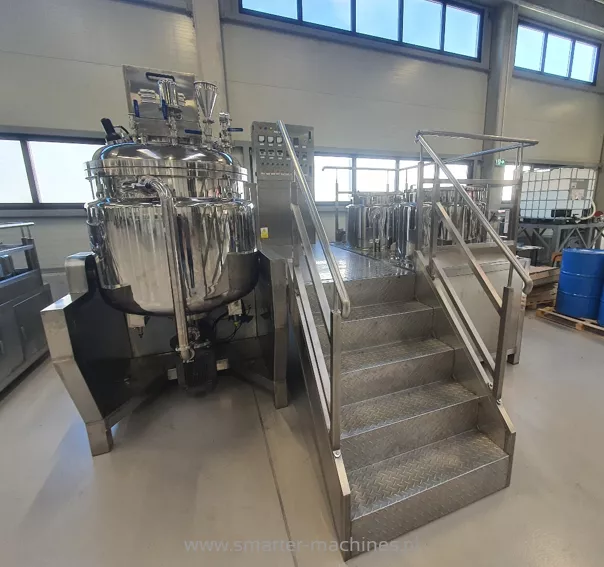

The complete system consists of:

• main homogenizing mixer with working capacity from 150 to 500 L,
• water phase tank with 450 L working capacity,
• oil phase tank with 200 L working capacity.

The system is intended for use in:

• cosmetic manufacturing plants,
• pharmaceutical production facilities,
• chemical industry,
• food processing industry,
• contract manufacturing organizations (CMO),
• pilot and R&D production facilities.

High-Performance Industrial Homogenizing Mixer

The main mixing vessel is equipped with a central homogenizer designed for intensive emulsification and particle size reduction, ensuring stable and uniform product structure.

Additionally, the unit features two counter-rotating agitators, including one scraper-type agitator that enhances product circulation and prevents material buildup on the vessel walls.

This configuration provides:

• excellent product homogeneity,
• stable large-batch emulsions,
• efficient high-capacity homogenization,
• uniform mixing throughout the entire vessel volume,
• reliable and repeatable industrial processing.

The lifting lid design ensures easy access for operation, maintenance, and cleaning.

Water and Oil Phase Preparation Tanks – Large Scale Production

The system includes two dedicated preparation vessels:

• water phase tank with 450 L working capacity,
• oil phase tank with 200 L working capacity.

Both tanks are equipped with dispersing agitators, enabling efficient preparation of raw materials before transfer into the main homogenizing vessel.

This multi-tank configuration significantly improves production efficiency and supports continuous, multi-stage industrial processes.

Stainless Steel Construction and Heating Jacket

The entire system is manufactured from high-grade stainless steel suitable for demanding industrial environments and continuous production.

The main mixer is equipped with a heating jacket, allowing precise temperature control during processing, which is essential for manufacturing:

• cosmetic emulsions,
• creams and lotions,
• pharmaceutical ointments,
• gels and suspensions,
• chemical and technical formulations.

The robust design ensures durability, corrosion resistance, and compliance with industrial hygiene standards.

Main Features

• 500 L industrial homogenizing mixer,
• working capacity: 150–500 L,
• central homogenizer,
• two counter-rotating agitators,
• scraper agitator,
• lifting lid,
• 450 L water phase tank,
• 200 L oil phase tank,
• dispersing agitators,
• heating jacket,
• stainless steel construction,
• industrial-scale production system.

Applications

The system is suitable for production of:

• cosmetic creams,
• emulsions,
• balms,
• gels,
• pharmaceutical ointments,
• chemical formulations,
• personal care products,
• large-scale industrial manufacturing processes.

Equipment Condition

• used equipment,
• very good condition,
• complete production line,
• documentation not included.
