Glass Process Equipment Set – 50 L Glass Filter Nutsche DN400 + SIMAX RPD 100 Glass Reactor

The offered process equipment consists of a 50 L glass filter nutsche and a SIMAX RPD 100 glass reactor system, designed for laboratory, pilot plant, and small-scale industrial production. The equipment is suitable for filtration, chemical synthesis, crystallization, extraction, mixing, distillation, and other demanding process applications.

Manufactured from high-quality borosilicate glass (SIMAX) and equipped with PTFE components and a Hastelloy C22 manual agitator, the system offers excellent chemical resistance and is suitable for the pharmaceutical, chemical, cosmetic, biotechnology, and food industries.

Included Equipment

Glass Filter Nutsche DN400 – 50 L

The glass filter nutsche is designed for vacuum and gravity filtration of liquids and suspensions.

Features

• Capacity: 50 L
• Diameter: DN400
• Heating/cooling jacket
• Manual agitator made of Hastelloy C22
• Borosilicate glass construction
• Excellent resistance to corrosive chemicals

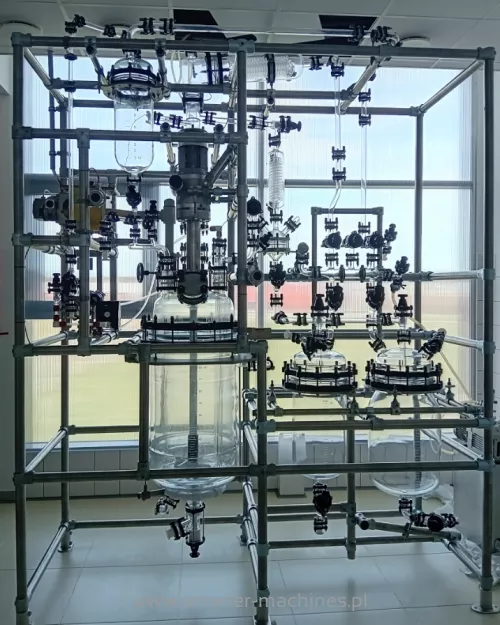

SIMAX RPD 100 Glass Reactor System

Complete 100 L glass reactor for chemical processing and pilot production.

Main Equipment

• SIMAX RPD 100 glass reactor (100 L)
• Manual DN50 bottom discharge without dead space
• Gravity outlet with Clamp 50.5 PTFE connection
• PTFE-coated agitator shaft
• Three interchangeable impellers:
  • Anchor
  • Turbine
  • Propeller
• Chemically resistant mechanical vacuum seal
• Variable-speed drive

Reactor Lid with Seven Process Connections

The reactor cover is equipped with seven technological ports allowing flexible process configuration.

Connections include:

• Central DN80 agitator port
• DN100 charging/CIP cleaning port
• DN50 thermometer pocket
• DN80 outlet for column and condenser
• DN50 solids feeding port
• DN50 sampling port
• DN50 connection for 10 L dosing vessel with nitrogen supply

Additional Equipment

The package also includes:

• 10 L dosing vessel
• Reflux condenser (0.75 m² heat exchange surface)
• Two receiving vessels:
  • 25 L
  • 50 L
• Sampling manifold with pump
• pH electrode
• Emergency stop switch
• Stainless steel AISI 304 support frame

Technical Specifications

Glass Filter Nutsche

• Capacity: 50 L
• Size: DN400
• Heating/cooling jacket
• Manual Hastelloy C22 agitator

SIMAX RPD 100 Reactor

• Capacity: 100 L
• Borosilicate glass (SIMAX)
• Stainless steel AISI 304 frame
• Motor power: 0.55 kW
• Variable speed: 0–150 rpm
• Reflux condenser: 0.75 m²
• Receiving vessels: 25 L and 50 L
• PTFE seals
• Vacuum operation
• Nitrogen dosing capability
• Sampling system
• CIP-compatible design

Documentation Included

Comprehensive technical documentation is supplied, including:

• Operating manuals
• Safety instructions
• Assembly instructions
• Technical drawings
• Complete reactor diagrams
• Sampling system diagrams
• Glass component drawings
• Spare parts specifications
• SIMAX glass certificates
• PTFE certificates
• Food-contact compliance certificates
• Drive certificate
• Control panel documentation
• Dellmeco pump documentation
• Safety component documentation

Applications

Ideal for:

• Pharmaceutical manufacturing
• Chemical processing
• Cosmetics production
• Biotechnology
• Research & Development laboratories
• Pilot plants
• Chemical synthesis
• Crystallization
• Extraction
• Distillation
• Vacuum filtration
• Process development

Additional Information

The equipment can be demonstrated remotely via live video call, allowing potential buyers to inspect the system online. On-site inspection is also available by prior appointment.
